Industrial Sectional Door

Industrial lift doors (also known as industrial sliding lift doors, segmented lift doors) are modern industrial doors designed specifically for large door openings in industrial plants, logistics warehouses, fire stations, and other areas. The door body is horizontally connected by multiple high-strength sandwich insulation door panels, which are driven by a motor to slide upwards along the two tracks and open. When opened, the door body can be horizontally parked or vertically lifted along

一,,the ceiling, without occupying any ground passage space.

Shunpeng Industrial lifting doors integrate insulation, wind resistance, theft prevention, sealing, dust prevention, safety and reliability, and are widely used in logistics loading and unloading platforms, production workshops, cold chain warehouses, fire garages and other scenarios.

Door panel thickness 40mm/50mm optional, polyurethane density ≥ 45kg/m ³
Running speed 0.2-0.3m/s, smooth start stop, noise ≤ 65dB
Wind and pressure resistance up to the national standard 10-11 level, suitable for large-sized door openings
The lifespan of the torsion spring ranges from 50000 to 100000 working cycles
Support multiple lifting methods including standard/high position/vertical/inclined top

二、 Six core advantages
1. Efficient thermal insulation: double-layer galvanized color steel plate is filled with high-density polyurethane foam, which has low thermal conductivity, effectively blocks the cold and heat exchange, and reduces the energy consumption of air conditioning/heati

2. Smooth and quiet operation: Twisted spring balance system+industrial grade motor drive, nylon coated steel bearing pulley, start stop buffer design, low operating noise below 65dB.

3. High strength wind and anti-theft: The door panel is equipped with reinforced back ribs and heavy-duty galvanized tracks, with a wind resistance level of 10-11. The door body is sturdy and anti-theft, suitable for outdoor large openings.
4. Sealed dust prevention around: Wear resistant sealing strips are installed on the top, bottom, and both sides, with a gap of ≤ 3mm after closure, effectively preventing dust, insects, and airflow.
5. Multiple safety protections: bottom airbag, infrared photoelectric protection, torsion spring anti breakage device, door body anti fall protection, anti pinch door panel, ensuring comprehensive safety.
6. Flexible customization and adaptation: supports multiple lifting methods, door panel materials, colors, windows, door middle doors, and other optional features, with a maximum width of 8m x height of 10m, and non-standard customization is available.

三,、 Detailed explanation of door panel structure

The door panel is made of double-layer hot-dip galvanized color steel plate, with orange peel embossing/fine stripe treatment on the surface, which is scratch resistant, wear-resistant, weather resistant and corrosion-resistant; High density polyurethane insulation material filled with one-time high-pressure foaming in the middle, formed as a whole without cold bridges. The door panel connection adopts anti pinch design, which will not pinch fingers during the opening and closing process.

   Door panel structural parameters

Optional materials: color steel plate/304 stainless steel/aluminum alloy; Surface treatment: powder electrostatic spraying/fluorocarbon paint; Color: white, gray, blue, red, etc. (color card customization available)。

四,、 Four ways to improve

1. Standard improvement: The door body rises along the track and turns, then horizontally parks above the door opening under the ceiling. The most commonly used lifting method is easy to install, economical and practical.
▶  Space requirement: Door top clearance of 500-1000mm

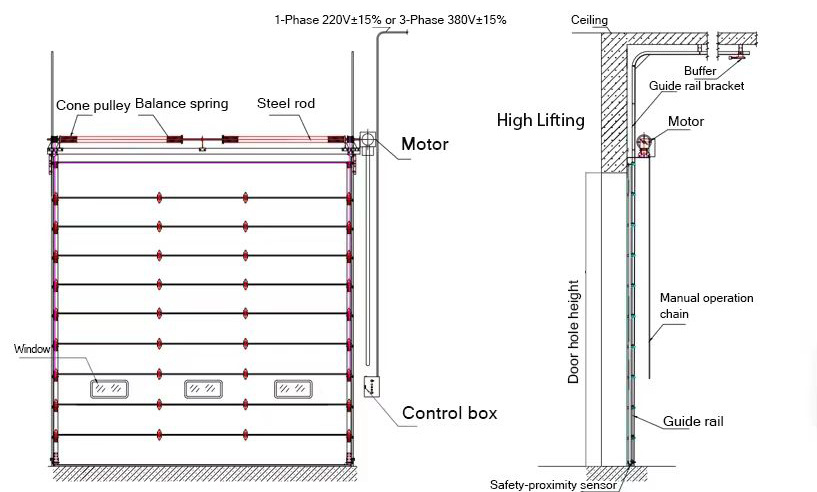

2. High level lifting: The door body first rises vertically for a certain distance and then turns to park horizontally. It is suitable for scenes where the space above the door opening needs to be preserved due to the high space at the top of the door.
▶  Space requirement: Door top clearance ≥ 1/2 of door height
3. Vertical lifting: The door slides upwards along the vertical track throughout the entire process, and is completely lifted vertically to directly above the door opening, without occupying indoor horizontal space.
4, ▶  Space requirement: Door top clearance ≥ door body height
Sloping roof lifting (optional): The track is arranged along the angle of the sloping roof, and the door body runs in accordance with the sloping roof. It is suitable for steel structure herringbone roof factories, warehouses and other buildings. All lifting methods must be designed and selected based on professional measurements of the on-site door opening size, lintel space, indoor net height, and roof structure.

五,Security protection system

1. Bottom airbag: The bottom of the door is equipped with a rebound airbag when encountering obstacles. During the closing process, it will immediately rebound and activate when encountering obstacles to prevent injury to personnel or vehicles.
2. Infrared photoelectric protection: Infrared sensors are installed on both sides of the door opening. If a person/vehicle passes by and blocks the beam when the door descends, the door will immediately stop and bounce back.
3. Anti breakage device for torsion spring: Anti breakage protection devices are installed at both ends of the torsion spring. Once the torsion spring accidentally breaks, the anti breakage hook immediately locks the track to prevent the door from falling.
4. Steel wire rope anti fall protection: Equipped with a steel wire rope anti fall device, when the steel wire rope relaxes or breaks, the anti fall device instantly locks the door body, eliminating the risk of falling.
5. Anti pinch hand door panel: The hinge connection of the door panel adopts an anti pinch hand structure design, and the door panel will not form a pinch hand gap during bending operation, protecting the safety of operators.
6. Power off manual clutch: The motor is equipped with a manual clutch, which can be released in case of power failure or emergency. The door can be opened and closed manually through a zipper to ensure emergency passage.

六, Technical Specifications

七、 Application scenarios

Industrial lifting doors are widely used in various industrial and commercial places, with typical scenarios including:
Industrial plant: production workshop gate, equipment passage entrance, large plant entrance and exit
Logistics warehouse: loading and unloading platform, warehousing and distribution center, express distribution center
Cold chain cold storage: refrigerated and frozen warehouse, constant temperature clean workshop, food processing workshop
Fire Garage: Fire Station Garage, Emergency Vehicle Access, Rescue Center
Other scenes: car 4S shop repair workshop, precision instrument warehouse, airport hangar, property underground garage
It can be used in conjunction with the Dock Leveler and Dock Shelter to form a complete logistics loading and unloading system, improving the efficiency and sealing of loading and unloading operations.

八、 Optional features
1. Perspective window: The door panel can be embedded with acrylic or tempered glass windows to increase natural lighting indoors, facilitate observation of the situation outside the door, and enhance safety and aesthetics.

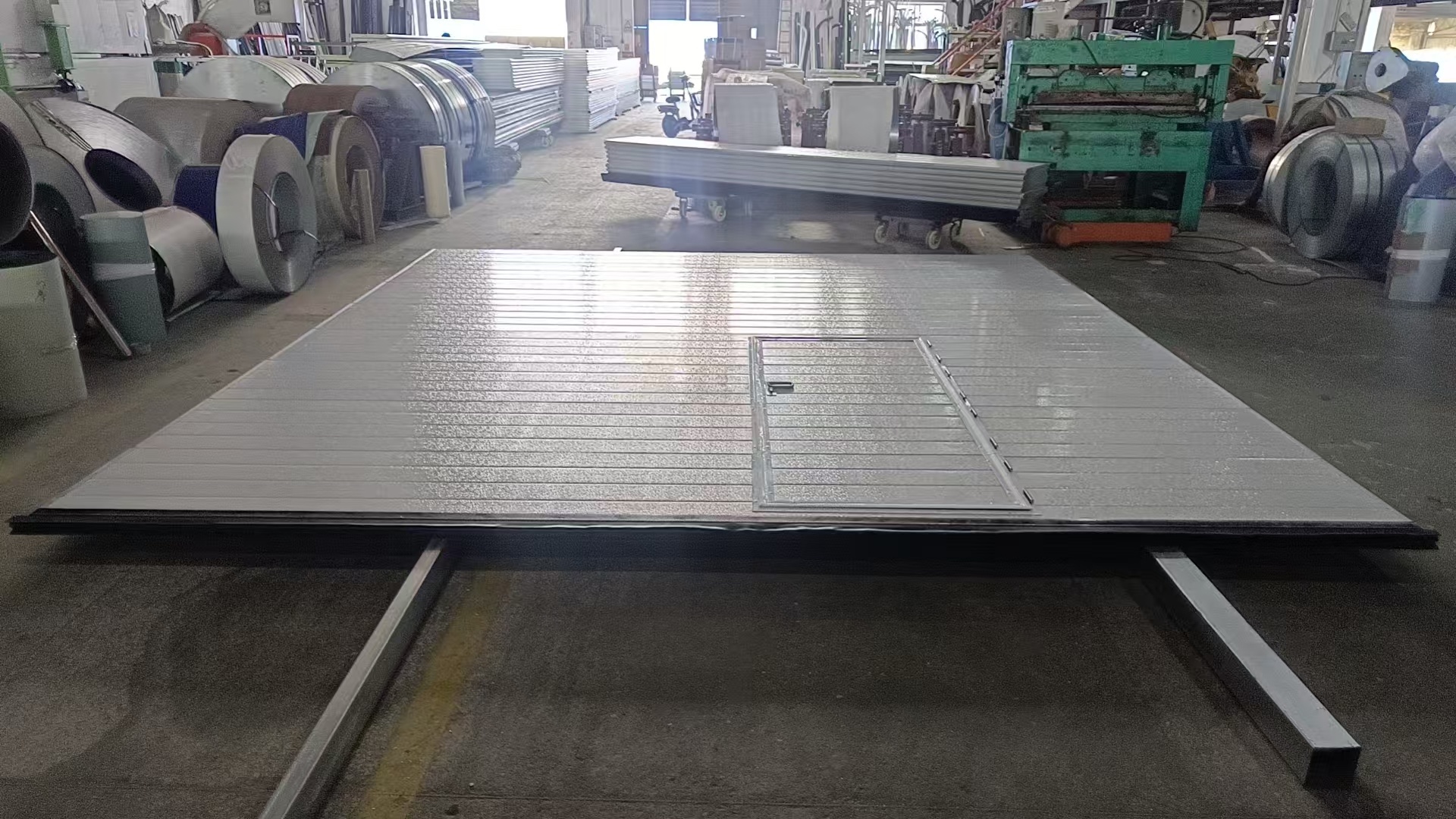

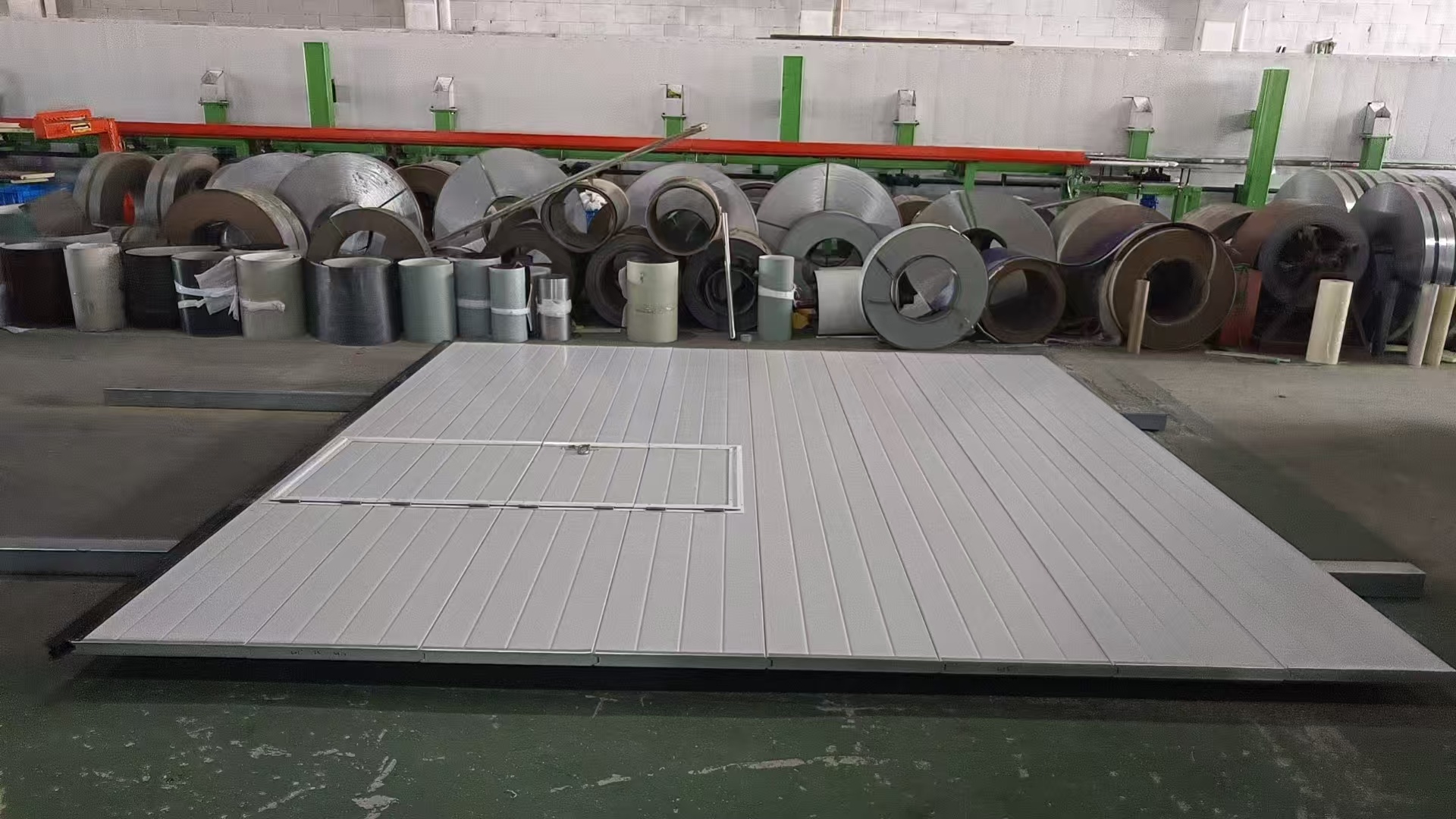

2. Door in door (pedestrian small door): An independent pedestrian small door is integrated on the main door panel, allowing personnel to pass without opening the entire door, reducing the loss of hot and cold air, and achieving energy efficiency.
3. Fast motor: Optional high-speed industrial door motor can be used to improve opening and closing speed, shorten opening time, and is suitable for high-frequency logistics channels.
4. Geomagnetic/Radar Sensing: When the vehicle approaches, it automatically opens the door, and when it leaves, it automatically closes the door, achieving unmanned fully automatic passage and improving logistics operation efficiency.
5. Interlocking linkage: It can be interlocked with equipment such as fast doors, loading and unloading platforms, and signal lights to ensure safe and orderly operation processes and prevent misoperation.
6. Stainless steel/aluminum alloy door panels: suitable for special environments such as food, medicine, and chemical industries that require high corrosion resistance and cleanliness. They are beautiful and easy to clean and maintain.
