PVC high-speed stacking door
Key words:
PVC high-speed stacking door
Classification:
Description
Product Parameters

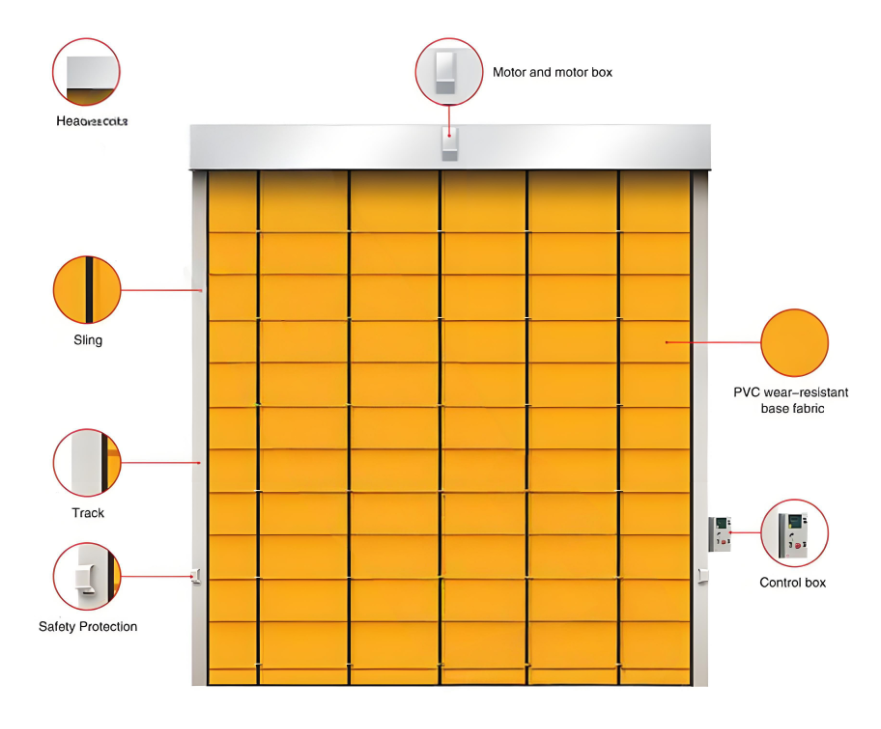

The soft rapid stacking door consists of a dedicated high-speed motor, a dedicated control box, a door casing, a main body fabric, a transparent window, steel windproof rods, tracks, sensors, and safety protection equipment.
Speed can reach 0.6-1.2M/S; Motor control box power: 50HZ 380v-220V 0.75KW-1.5KW-2.2KW (customized according to size); Door casing: Regular casing side plate height 300mm*width 400mm; Main body fabric: PVC industrial polyester fiber wear-resistant fabric, main body thickness 0.9mm. Transparent window: Material is PVC crystal plate, thickness 1.5mm.
Steel windproof rod: Diameter 2 inches, thickness 1.2mm, installation interval 50cm-100cm, galvanized; Plastic track: Regular width is 150mm, thickness is 225mm, galvanized plate thickness 2.0mm.
The above are standard configurations, and product specifications can be customized according to size and requirements.
Product Introduction
The rapid stacking door is a highly efficient and practical door product. It combines multiple advantages, including mechanized and automated opening and closing, good sealing and energy-saving effects, and versatility to meet special functional needs.
◇ Rapid opening: The opening speed of the stacking door is 0.8-1.6m/s, and the closing speed is 0.5-1.0m/s, providing rapid opening and closing functions.
◇ Energy saving and insulation: The rapid opening and closing function of the door improves the cold and warm insulation effect in summer and winter, reduces energy loss, and saves energy.
◇ Sealing and isolation: The bottom is equipped with an elastic PVC fabric air seal, which can be precisely combined with various uneven ground surfaces to achieve a ten-thousand-level standard.
◇ Safety performance: The door frame and door casing are made of 2.0-2.5mm thick high-quality cold-rolled steel structure, with high-quality baking and spraying paint process; 2.0-2.5mm thick stainless steel or 3.5mm high-strength 6063 anti-oxidation industrial aluminum alloy columns provide high safety performance.
◇ Power system: Uses Harbin Wangfu stacking door dedicated motor. Control system: Uses high-tech PLC and inverter control.
Application Range
◇ The application range of rapid stacking doors is very wide, including but not limited to factory passageway exterior doors, workshop or warehouse partition doors, shopping malls, office buildings, community underground garage doors, and fire truck garage doors.
