Aluminum alloy rolling shutter door

   Aluminum alloy high-speed doors, also known as aluminum alloy hard turbine fast doors or high-speed rolling shutter doors, are upgraded and iterated products of traditional aluminum alloy rolling shutter doors and soft fast doors. The door body adopts a high-strength aluminum alloy hard door panel structure, combined with a turbine spiral track frictionless operation system, completely solving the pain points of slow speed, loud noise, poor sealing, weak wind resistance, easy damage, and lack of anti-theft of ordinary rolling shutter doors.

The opening and closing speed of the equipment can reach 1.2-2.0m/s, with quiet and smooth operation. It has five core advantages of high-speed passage, insulation and dust prevention, wind and theft resistance, corrosion resistance, and no high-frequency maintenance. It is widely suitable for high-frequency traffic scenarios such as industrial plants, logistics channels, dust-free workshops, commercial garages, cold chain workshops, etc. It is the preferred category for industrial clean passage, high efficiency and energy saving.

一,Hard aluminum alloy door panel, sturdy, durable, and resistant to manufacturing
1. The door body adopts thickened high-strength aviation grade aluminum alloy profiles, a double-layer hollow structure, and is filled with high-density polyurethane PU foam inside. The overall rigidity is strong, not easily deformed, impact resistant, and scratch resistant. Compared with PVC soft quick doors, it has excellent anti-theft, wind resistant, anti-collision, and anti damage performance; Aluminum alloy material has inherent oxidation and corrosion resistance characteristics, suitable for complex industrial environments with humidity, dust, and large temperature differences, greatly extending its service life.
2,. Turbo spiral operates silently, with zero friction for longer lifespan
Adopting an exclusive turbo spiral track storage system, the door operates without friction or stuttering, completely bidding farewell to the problems of traditional rolling shutter doors such as abnormal noise, card jamming, and paint wear and tear. Silent operation throughout the entire process, with full operational stability, significantly reducing the wear and tear of door panels and accessories. Long term high-frequency use is not prone to failure, and the average annual maintenance cost is extremely low.

3,. Fast opening and closing, efficient loss reduction
Different from the low-speed operation of ordinary rolling shutter doors at 0.2m/s, this product can open at a maximum speed of 2.0m/s and close at a speed of 0.6-0.8m/s, greatly reducing the opening time of the door opening. Effectively reducing air convection inside and outside the workshop, reducing temperature loss, dust and mosquitoes entering, adapting to high-frequency entry and exit scenarios of logistics forklifts, vehicles, and personnel, significantly improving the traffic efficiency and production energy-saving effect of the factory area.

4. Fully sealed isolation, clean insulation and noise reduction
The door opening is equipped with high-density EPDM wear-resistant sealing strips around it, and the bottom can adjust the flexible sealing structure to fit the ground without gaps, with air tightness reaching the national standard level 8. It can effectively isolate dust, mosquitoes, rainwater, and noise, while achieving excellent thermal insulation effect, suitable for clean and constant temperature operation requirements in dust-free workshops, food workshops, cold chain warehouses, and precision production workshops.
5. Multiple security protections, intelligent and worry free
Standard full set of safety protection system: infrared photoelectric sensing, automatic rebound in case of obstruction, emergency stop button, and manual release device for power failure. During operation, if an obstacle is detected, it will immediately rebound in the opposite direction to prevent the risk of trapping people, objects, or colliding with vehicle equipment; In case of sudden power outage, it can be easily manually turned on to ensure the safety of emergency passage and adapt to high-frequency and high safety demand scenarios in the factory area.

二、 Product structure configuration
• Main body of door panel: thickened double-layer aluminum alloy door panel, surface electrostatic spraying process, wear-resistant and anti-aging, no fading and deformation; Internally filled with PU foam for insulation, sound insulation, and stable structure.
Track system: Galvanized steel turbine spiral track, high-precision shaping, no deformation, corrosion-resistant, ensuring vertical, smooth and high-speed operation of the door body.
Drive motor: Industrial dedicated high-frequency servo motor, 220V/380V optional, precise start stop, strong power, high temperature resistance, 24-hour high-frequency start stop, no lagging, no burning machine.
Control system: Intelligent programmable PLC control system, responsive, supports multiple opening methods, and can be linked with workshop automation equipment.
Sealing system: The top, sides, and bottom are fully enclosed with sealing strips for dust, wind, and water resistance, suitable for clean working conditions.
• Safety system: infrared light curtain protection, rebound in case of obstruction, emergency stop switch, manual release of power-off, all-round safety protection.

三,、 Intelligent opening mode (optional)

• Standard configuration: wireless remote control, wall button switch
• Optional: Radar induction automatic activation, geomagnetic induction activation, facial recognition, card swiping password, access control linkage, double-sided control switch
Expansion: Can be integrated with assembly lines, AGV equipment, access control systems, and fire linkage to achieve automatic start stop

  四,Applicable scenarios
Industrial plant area: production workshop passages, equipment isolation areas, dust-free workshops, precision machining workshops
• Logistics warehousing: warehouse entrances and exits, loading and unloading channels, high-frequency entrances in logistics sorting areas
Special working conditions: cold chain warehouse, constant temperature workshop, food and pharmaceutical clean room, car wash room
• Commercial and civilian use: high-end shops, 4S stores, villa garages, enterprise entrance passages

 Product Parameters

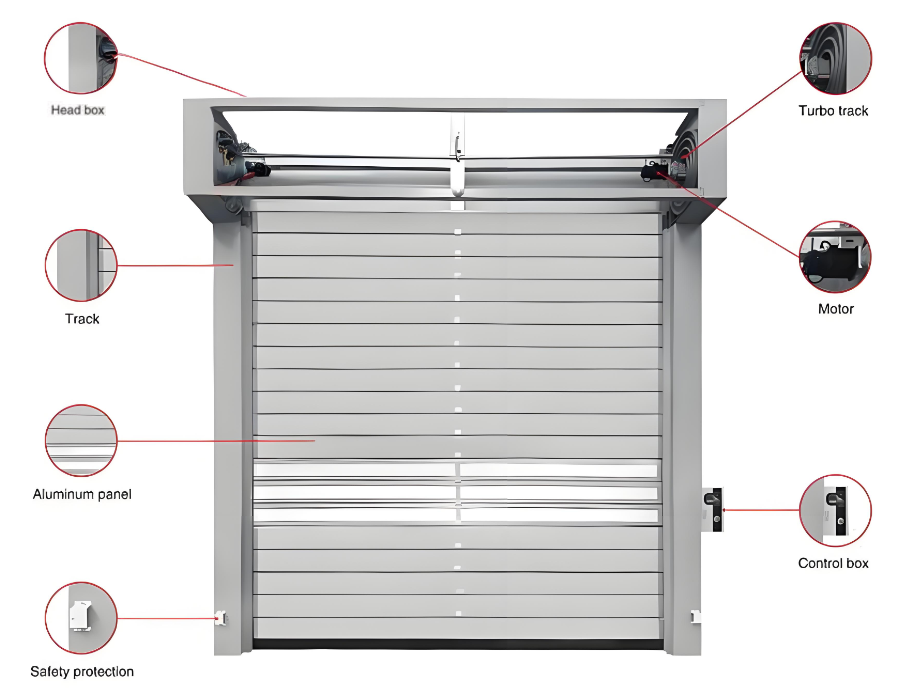

The high-speed rolling door consists of a high-speed dedicated motor, a dedicated control box, a door casing, aluminum alloy door panels, a viewing window, tracks, sensors, and safety protection equipment.
Speed can reach 0.6-1.2M/S. Motor control box power: 50HZ 380V-220V 0.75KW-1.5KW-2.2KW (customized according to size)
Door casing: The width of the turbine casing side panel is generally 600mm * 800mm high. Aluminum alloy door panel: Main body thickness 43mm, aluminum alloy door panel wall thickness 0.6mm, width 220mm
Viewing window: The viewing window is made of 1mm thick double-sided acrylic plate. Galvanized spray-painted track: The conventional width is 250mm, and the thickness is 2.0mm.
The above are standard configurations, and product specifications can be customized according to size and requirements.

Product Introduction

The high-speed rolling door is a new type of high-speed metal door with high strength, fast response, good protection, energy saving, and environmental protection.

After sales guarantee and service

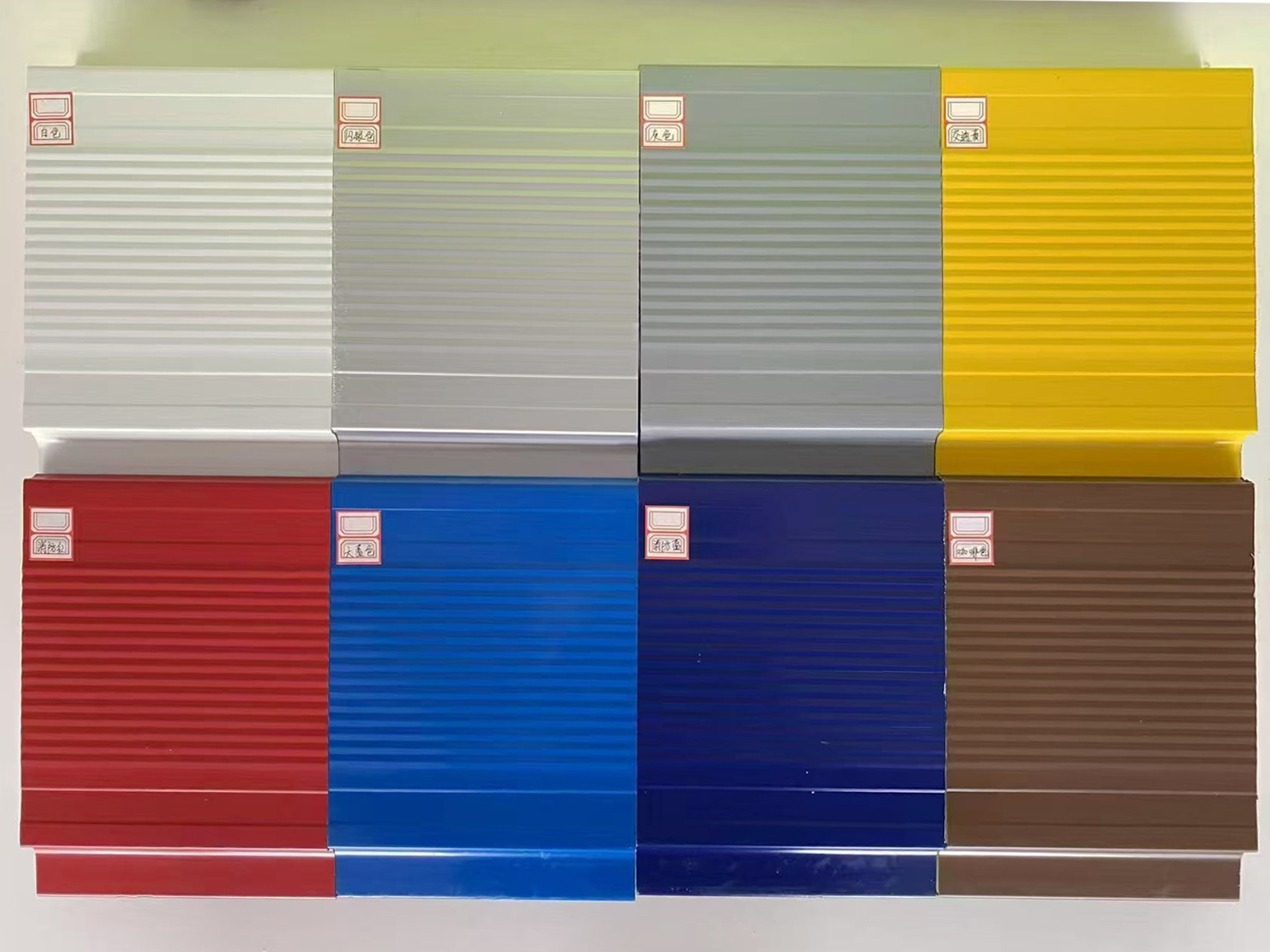

Customization service: supports non-standard customization of size, color, opening method, and functional configuration, suitable for various on-site working conditions
• On site service: free on-site survey, scheme design, professional on-site installation and commissioning
• Warranty and after-sales service: complete machine warranty, long-term warranty for motor and control system, lifetime cost maintenance
• Technical support: 24-hour online technical consultation, remote troubleshooting, and quick response to after-sales issues
