PVC high-speed roll-up door

Soft, high-speed roll-up doors are multifunctional doors widely used in various indoor settings such as food processing, chemical, textile, electronics, printing, warehousing, and precision machinery industries. Made of PVC soft curtains, they offer a range of functionalities including insulation, pest control, wind protection, dust prevention, sound insulation, odor control, and light transmission.

Key words:

Classification:

Fast Shutter Door

Email:

liujun@shunpengdoor.com

WhatsApp:

+1 646 5250 878

Inquiry

Contact

Description

Basic Colors

Product Parameters

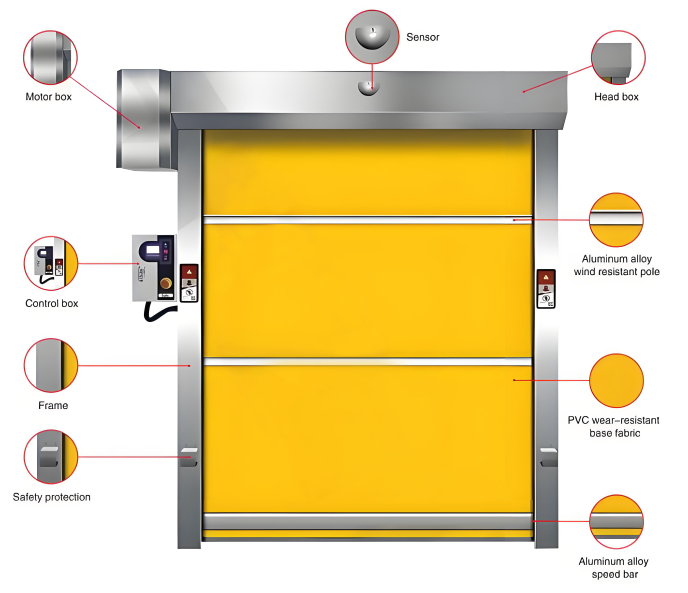

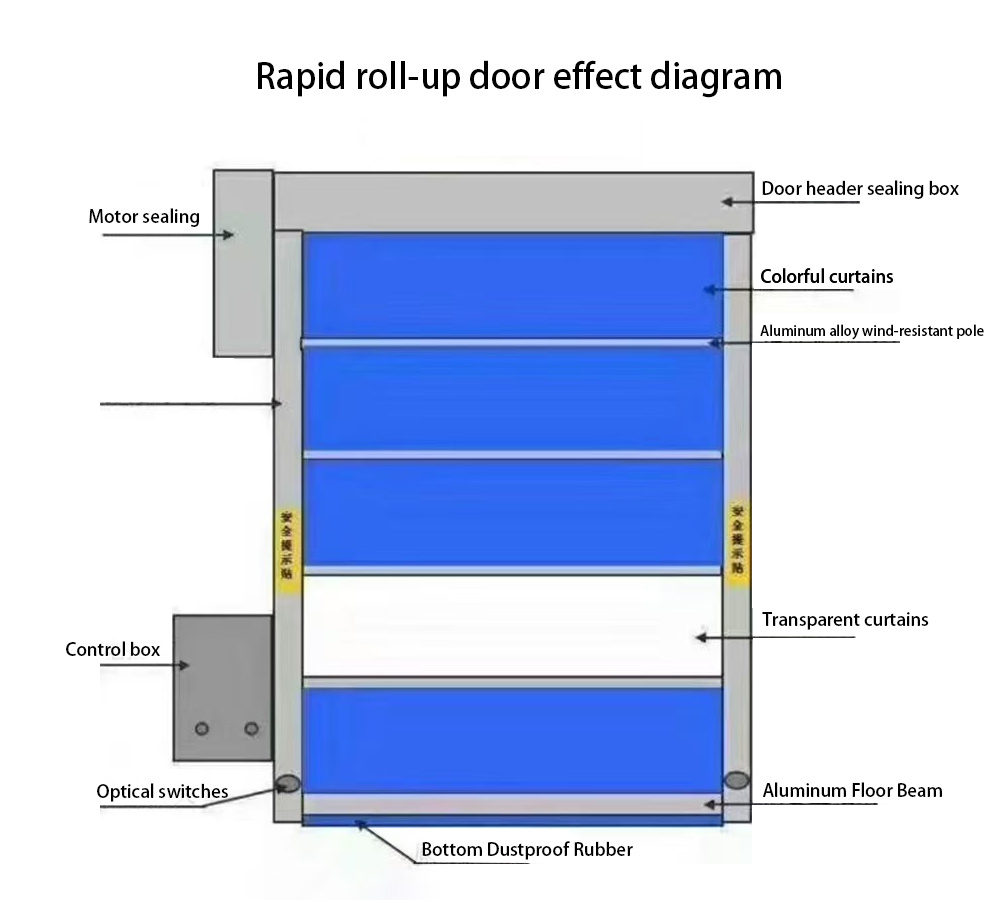

The soft rapid roll-up door consists of a high-speed dedicated motor, a dedicated control box, a door casing, a main fabric, a transparent window, aluminum alloy windproof rods, tracks, sensors, and safety protection equipment.
Speed can reach 0.6-1.2M/S: Motor control box power: 50HZ 380V-220v 0.75KW-1.5KW-2.2KW (customized according to size)
Door casing: The side panel of the casing is usually 260mm wide * 300mm high; Main fabric: PVC industrial polyfiber wear-resistant fabric, main thickness 0.9mm.
Transparent window: The material is 1.5mm thick PVC crystal plate; Aluminum alloy windproof rod: Diameter 60mm, thickness 2mm, installation interval 50cm-100cm.
Galvanized spray-painted track: The conventional width is 130mm, the thickness is 120mm, and the galvanized plate thickness is 2.0mm. The above are standard configurations, and product specifications can be customized according to size and requirements.

Door curtain combination method

Product Introduction

The soft rapid roll-up door is a door with multiple functions, widely used in various indoor environments such as food, chemical, textile, electronics, printing, warehousing, and precision machinery. It is made of PVC soft door curtains and has multiple functions such as heat preservation, insect prevention, wind prevention, dust prevention, sound insulation, odor prevention, and light transmission.

Application Range

◇ Industrial field: In the industrial field, soft rapid roll-up doors, due to their high-speed opening and closing characteristics, have become the preferred choice for many factories, workshops, and warehouses.
◇ Commercial field: In the commercial field, soft rapid roll-up doors, due to their beautiful and practical features, have become standard equipment for shopping malls, supermarkets, restaurants, etc.
◇ Logistics field: In the logistics field, soft rapid roll-up doors, due to their efficient and convenient characteristics, have become important equipment for logistics centers, warehouses, and distribution centers.
◇ Medical field: In the medical field, soft rapid roll-up doors, with their sterile and dust-proof characteristics, have become important equipment for hospitals, laboratories, and operating rooms.
◇ Other fields: In addition to the above fields, soft rapid roll-up doors are also widely used in public facilities, sports venues, aerospace, etc.
